D39 Cable GaN 100W Charger
  • D39 Cable GaN 100W Charger
  • D39 Cable GaN 100W Charger
  • D39 Cable GaN 100W Charger
  • D39 Cable GaN 100W Charger

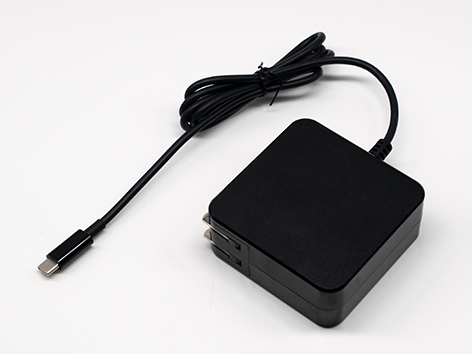

D39 Cable GaN 100W Charger

Input: 100-240V 50/60Hz 1.0A max

Output power:100W

AC inlet:C8 2Pin

AC power cord:Accept customization

Type c cable:1.2m*6 cores*18AWG with E-MARK chip

Available plugs: EU,US,UK

Dimension: 75*75*28.5mm

Protection: OVP OCP SCP OTP

Quality warranty: 24 months

Certificate: CE RoHS


  • Product overview

I. Product features:


1. Shell material: PC/ABS+PC, 120℃ high temperature resistance, fireproof rating: UL 94V-0;


Constant pressure working mode :±5%;


3. Brand IC scheme design, stable and reliable performance, low loss;


4. Environmental protection conforms to RoHS 2.0;


II, electrical characteristics:


1. Input voltage/frequency: AC 100 ~ 240V (90 ~ 264V), 50/60Hz (47/63Hz)


2. Output power: PD65W


3. Output voltage :100-240V~50/60Hz 0.6a Max


4. Output current:

USB-C: PD3.0 5V3A / 9V3A / 12V3A / 15V3A / 20V5A 100W Max

                      QC2.0 5V3A / 9V2.5A / 12V1.9A 22.8W Max

                       QC3.0 5V3A / 9V2A / 12V1.5A / 15V1.5A / 20V1A 22.5W Max

          PPS:3.3-21.0V 63.0W Max

5. Load adjustment range: ± 5%


6. Energy efficiency: meets class VI


7. Pressure test: AC 3000V/Min 5Ma/3S


8. Insulation impedance: DC 500V 100M ω


III, protection function:


1. Overcurrent protection: 120%


2. Overvoltage protection: 120%


3. Short circuit protection: automatic recovery


IV. Reliability Test:


1. Aging test: the product should be aged at least 2 hours in an environment of 40℃±5℃ and under 100% rated load conditions;


2. MTBF(mean time between failures): at least 50000 hours, at 25℃ and under input and full load conditions;


3. Drop test: 1M high, drop onto hardwood 30mm thick, and hardwood should be placed on cement base or equivalent inelastic floor;


VI, environmental requirements:


1. Operating temperature: 0 ~ 40℃


2. Storage temperature: -20 ~ 85℃


3. Working humidity: 5 ~ 95%RH


VII, safety certification:


CE RoHS
